Chroma 61800 Regenerative Grid Emulators new models

9kW, 12kW en 15kW
0-350V, 0-87A/0-96A. 0-105A
DC, 30-100Hz
DC output 0-495V
Regenerative
Standard USB and LAN

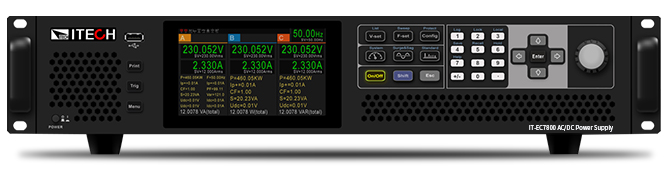

Itech IT7800 high power programmable AC/DC power supplies

3kVA to 15kVA , expandable up to 960kVA
0 to 350V L/N and 500V L/N 1-phase and 3-phase
DC output -495V to 495V and -90A to 90A (15kVA)
DC, 16Hz to 2400Hz
AC, DC, AC+DC and DC + AC
Power meter and harmonic analysis/generator IEC 61000-4-13
Variable output impedance IEC 61000-3-3

Itech IT7900 series regenerative grid emulators

Regenerative AC power supply
16Hz-150Hz
Regenerative 4-quadrant amplifier
Anti-Islanding Test Mode with RLC
AC, DC, AC+DC and DC+AC mode
0-350Vl-n
Max 0-700Vl-l (reverse mode)
IEC61000-4-11/4-13/4-28
Constant Voltage/Current limit/Power limit

Chroma 61500 series single-phase AC power supplies

Programmable AC source
0-150V / 0-300V single phase
500VA tot 90kVA / DC – 1kHz
AC+DC output
Programmable output impedance
Prgm. Dips , interrupts, THD
IEC 61000-3-3, -4-11, -4-13, -4-14, -4-28

IT-M7700 High Performance AC Power Supplies from Itech

300V, 3A and 6A models
Ultra compact design ½ 19” rack wide and 1U height
AC, DC, AC + DC output modes
Built-in AC power meter with powerful functions
Arbitrary waveform output function, and List mode
IEC 61000-4 standard and avionics standard compliance testing
USB, CAN, LAN, GPIB and RS232 option

Itech IT7600 series AC power supplies

Maximum power up to 54 kVA
Voltage up to 300 V / 600 V / 1200 V*1
Realize AC, DC, AC+DC output modes, AC+DC can realize simulating distortion of DC Voltage
Simulate arbitrary waveform output, support CSV format to import waveform
7” DSO function

Chroma 61500 single- and three-phase AC power supplies

Programmable AC source
0-175V / 0-350 Vrms
3000 VA, 4500 VA, 6000 VA, DC – 2kHz
AC+DC output
Programmable dips, interrupts, harmonics
IEC 61000-4-11, -4-13, -4-14, -4-28, 4-29*

Chroma 61600 series single- and three-phase AC power supplies

Programmable AC source
0-175V / 0-350 Vrms
3000 VA, 4500 VA, 6000 VA, DC – 2kHz
AC+DC output

Chroma 61600 Series single phase AC power supplies

Programmable AC source
0-150V / 0-300V single phase
500VA tot 90kVA / DC – 1kHz
AC+DC output
Extensive measurement capabilities
Optional: analoge, RS232+GPIB, USB+LAN

NF EC Series single phase AC power supplies

Programable AC + DC source
0-155V / 0-310V single phase
750VA and 1000VA models
DC, 1 to 550Hz
Internal signal source + ext input
Extensive measurement capabilities
Including power analyzer
RS232 and USB standard

Itech IT7300 Programmable AC Power Supply

High accuracy and resolution
Compact and standard size (300 VA 1⁄22 U)
Programmable frequency: 45Hz – 500Hz
Display Vrms, Irms, Ipeak, frequency, PF, apparent power and active power simultaneously
IEC61000-4-11, IEC 61000-4-14, IEC 61000-4-28 voltage dips and frequency variation simulation

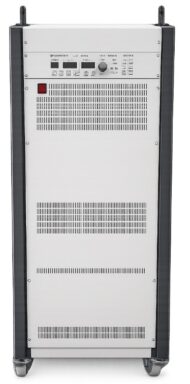

Elettrotest TPS Series single-phase AC power supplies

single phase output
1500VA, 3kVA, 6kVA and 9kVA models
150V and 300V range
Frequency, 10-80Hz
Inrush current function.
non isolated output
RS232 standaard
LAN and GPIB/RS485 optional

Elettrotest CPS Series single-phase AC power supplies

single phase output
1000VA, 2500VA, 5kVA and 10kVA models
0-300V range
Frequency 10-80Hz
Inrush current function.
non isolated output
RS232 standaard
LAN and RS485 optional

N4L N4A Series single-phase AC power supplies

Single phase output: 0-300Vrms / 0-425Vdc
Bandwidth: 1kHz Full Signal, 10kHz Small Signal
THD%: <0.3%
3kVA and 6kVA units, double inrush power (3 sec)
Custom Arbitrary Waveform, Sequencing and More.
compliance to a range of international EMC standards

Chroma 61700 Series three-phase AC power supplies

3 fase AC+DC output
1.5kVA – 12 kVA (3 fase)
0-150 /0-300Vrms (L-N)
DC, 15-1.2kHz
instelbare fasehoek 0-360º
Transient voltage (optioneel)
Remote : GPIB/RS232/ext V
single and three phase input

Chroma 61500 Series three-phase AC power supplies

Programmable 1 or 3 phase AC source
0-150V / 0-300V (L-N) ranges
12kVA to 90 kVA
DC – 1.5kHz
AC+DC output
Different measurement functions
RS232, GPIB, USB, LAN
Programmable output impedance (61500 series)
Prgm. Dips , interrupts, THD

Programmable AC power supplies, regenerative grid emulators, and frequency converters are terms that we use to refer to instrumentation that simulate the electrical mains. TTMS currently has a wide assortment and seven types of suppliers to provide you with the right solution for your application.

They range from simple AC power supplies for the simulation of a clean net at 50 and 60 Hz, to the more extensive power supplies with frequencies up to 5 kHz, and the extensive possibilities for the creation of defined mains pollution, according to IEC 61000 standards. Examples of these are more extreme net simulations with different types of phase angles between the phases, and L-L voltages up to 600Vrms. All of this with power up to 1.2MVA+.

We distinguished between single phase and three-phase alternating current power supplies to simplify the selection. In addition, we carry AC power supplies with an arbitrary waveform generator to create voltage dips, and harmonic and inter-harmonic distortions.
Regenerative AC power supplies are particularly suitable for AC motors and solar inverter testing, where the load can supply energy back to the net.

We also offer several solutions for portable applications.
