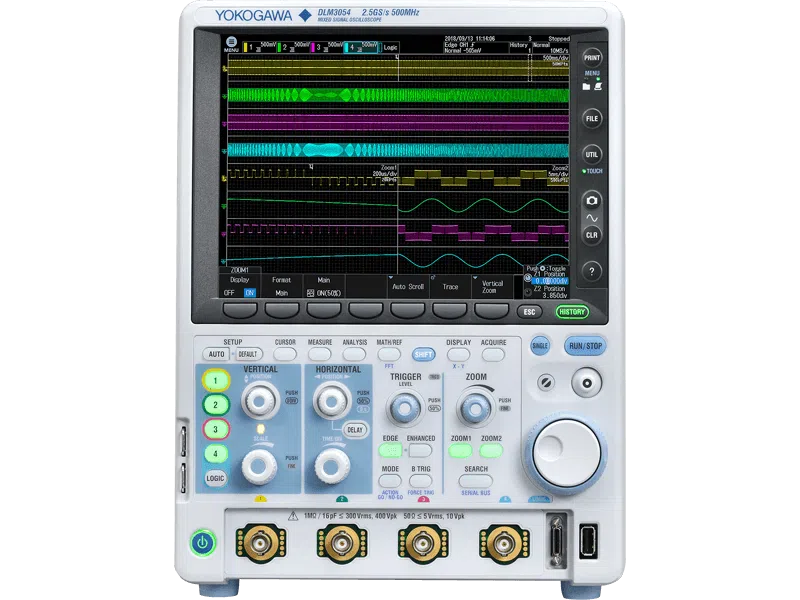

Yokogawa DLM3000 Series High Definition Oscilloscoop

  • 4 analog channels
  • 8-bit logic
  • Bandwidth: 350 or 500 MHz
  • Sample Rate: up to 2.5 GS/s
  • Vertical resolution: 12-bit
  • High resolution mode: up to 16-bit
  • Measurement memory: up to 1 GigaPoints
  • History waveforms: up to 200,000 triggers
  • Synchronization function for up to 8 analog channels
  • Logic and Serial Bus Analysis

The Yokogawa DLM3000 Series Oscilloscopes offer a powerful combination of advanced technology and ease of use, designed to meet the demanding needs of engineers in industries as diverse as automotive, electronics, and embedded systems. Available in 2- and 4-channel versions, this series can be equipped with both analog and logic inputs (4-channel versions only), making it ideal for performing complex signal analysis.

This oscilloscope offers a frequency bandwidth of up to 500 MHz and a sampling rate of 2.5 Gigasamples per second. The DLM3000 comes standard with 8 bit digitizers. The DLM3000HD series has a high vertical resolution of 12 bits, providing detailed representation of waveforms, such as overshoot and ringing, which are often essential for diagnosing electrical noise and other anomalies. The device’s greater accuracy allows it to detect small signal changes even at high speeds, making it an indispensable tool for professionals striving for the highest level of precision.

The available models

DLM3022
DLM3024
DLM3032
DLM3034
DLM3034HD
DLM3052
DLM3054
DLM3054HD

One of the core advantages of the DLM3000 series is its long memory storage capacity, which can hold up to 500 Mbyte points. This means users can capture long measurement sequences without sacrificing detail, allowing them to analyze complex waveforms over long periods of time. In addition, the device provides convenient zoom and search functions that help quickly locate specific parts of a waveform, increasing user efficiency. This functionality also makes it possible to accurately examine rare and transient phenomena, which is crucial in testing and development environments.

Protocols

The DLM3000 series is ideally suited for performing detailed serial bus analysis. The oscilloscope supports a wide range of communication protocols, including I2C, SPI, CAN and LIN, which are widely used in automotive and embedded system applications. The device provides comprehensive functions for decoding and analyzing these protocols, enabling engineers to effectively troubleshoot and implement solutions in complex electronic systems.

The design of the DLM3000 series makes it easy to operate thanks to a bright 8.4-inch touch screen. This screen ensures that all critical measurement data is clearly and conveniently displayed, while the intuitive control panel with rotary knobs and touch controls allows quick and precise adjustments. The oscilloscope is also equipped with advanced noise reduction features, ensuring reliable performance even in electromagnetically harsh environments. This makes the device suitable for use in a variety of environments, from research laboratories to manufacturing environments.

The DLM3000 series is built with the needs of the modern engineer in mind. Whether measuring complex waveforms, performing serial bus analysis or troubleshooting electrical systems, the DLM3000 offers the perfect balance of power, versatility and precision. With a rugged design, advanced technical specifications and comprehensive analysis functions, this is an instrument you can rely on for everyday test and measurement tasks.
