End of live of the Spectrum M2i.60xx series.

The Spectrum M2i.60xx series is replaced by the M2p.65x series arbitrary waveform generators.

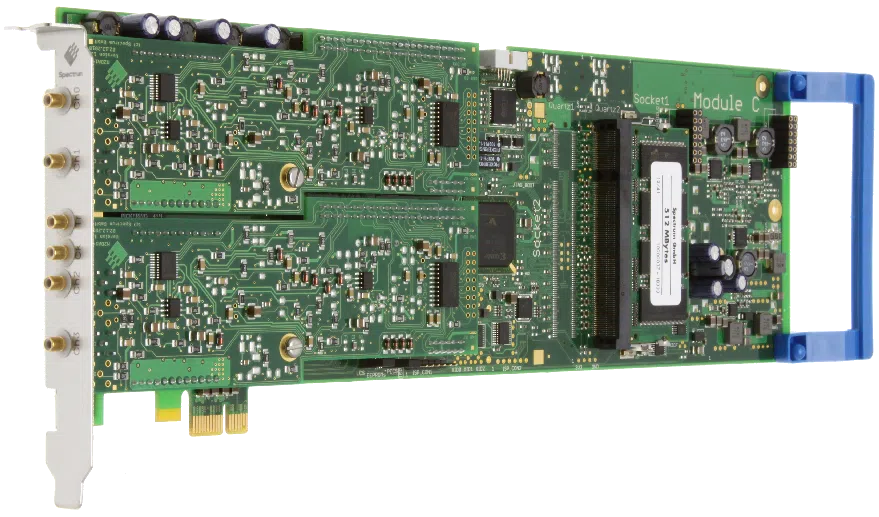

Spectrum M2i.60xx

The Spectrum M2i.60xx Series of arbitrary waveform generators are 14-bit digital to analogue converters. There are versions with 1, 2 and 4 channels, with sample speeds up to 125MS/sec. Up to 16 cards can be synchronized in one system. Synchronization with the analogue data acquisition maps from the M2i series is also possible. Optionally, there are also 2 synchronized digital channels available and 8 asynchronous digital channels.

All cards in the M2i.60xx Series have a maximum of 1GSample on board memory. In FIFO mode, it is also possible to stream data from PC memory to the memory of the M2i.60xx card.

The M2i. 60xx models are available in both PCI and PCI-express versions

 Model #  1-ch 2-ch  4-ch
 M2i.6011 20 MS/s 20 MS/s
 M2i.6012 20 MS/s 20 MS/s 20 MS/s
 M2i.6021 60 MS/s 60 MS/s
 M2i.6022 60 MS/s 60 MS/s 60 MS/s
 M2i.6030 125 MS/s
 M2i.6031 125 MS/s 125 MS/s
 M2i.6033 125 MS/s 62.5 MS/s
 M2i.6034 125 MS/s 125 MS/s 62.5 MS/s
 M2i.6011-exp 20 MS/s 20 MS/s
 M2i.6012-exp 20 MS/s 20 MS/s 20 MS/s
 M2i.6021-exp 60 MS/s 60 MS/s
 M2i.6022-exp 60 MS/s 60 MS/s 60 MS/s
 M2i.6030-exp 125 MS/s
 M2i.6031-exp 125 MS/s 125 MS/s
 M2i.6033-exp 125 MS/s 62.5 MS/s
 M2i.6034-exp 125 MS/s 125 MS/s 62.5 MS/s

All Spectrum arbitrary waveform cards also have features such as Multiple replay (segmented memory), Gated replay and sequence mode. There are extensive trigger options such as pattern triggering (with BaseXIO option), pulse width triggering and external triggering. The M2i.60xx cards come with an extensive package of software support. Drivers for Windows and Linux operating systems (32 bit and 64 bit) are included. Example programs and drivers for C/C+++, LabVIEW (Windows), MATLAB (Windows and Linux), LabWindows/CVI, IVI, NET, Delphi, Visual Basic and Python are available. A basic licence of the Spectrum software SBench 6 and SPEasy generator is standard included.

Open the datasheet for detailed specifications of this product.
