Spectrum M2i.20xx Series digitizer cards
|
End of live of the Spectrum M2i.20xx series.
The Spectrum M2i.20xx series is replaced by the M4i.442x series digitizers.

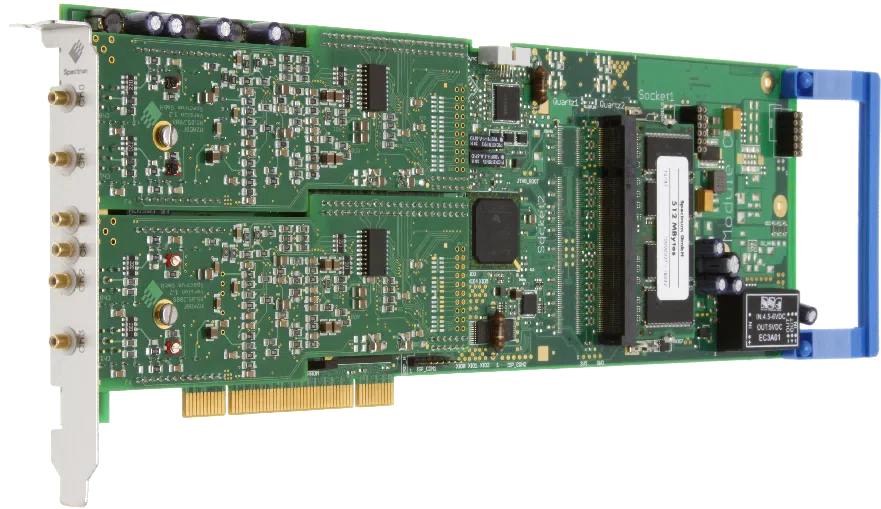

Spectrum M2i.20xx
The Spectrum M2i.20xx series digitizer cards are 8-bit digitizers with a maximum sample rate of 200MS/sec. Depending on the model you will have up to 4 channels. Up to 16 cards can be synchronized in one system. Synchronization with the digital I/O cards and arbitrary waveform generators from the M2i series is also possible. All cards in the M2i. 20xx series have a maximum of 2GSample on board memory. In FIFO mode, it is possible to simultaneously forward the data to PC memory and retrieve new data.
The M2i.20xx models are available in both PCI and PCI-express versions
| Model # | 1-ch | 2-ch | 4-ch | |
| M2i.2020 | 50 MS/s | 50 MS/s | ||
| M2i.2021 | 50 MS/s | 50 MS/s | 50 MS/s | |
| M2i.2030 | 200 MS/s | 100 MS/s | ||
| M2i.2031 | 200 MS/s | 200 MS/s | 100 MS/s | |
| M2i.2020-exp | 50 MS/s | 50 MS/s | ||
| M2i.2021-exp | 50 MS/s | 50 MS/s | 50 MS/s | |
| M2i.2030-exp | 200 MS/s | 100 MS/s | ||
| M2i.2031-exp | 200 MS/s | 200 MS/s | 100 MS/s | |
All Spectrum digitizers also have acquisition modes such as Multiple recording (segmented memory), Gated sampling and ABA mode (sample speed switching) for data reduction.
All digitizers come with an extensive package of software support. Drivers for Windows and Linux operating systems (32-bit and 64-bit) are included. Example programs and drivers for C/C+++, LabVIEW (Windows), MATLAB (Windows and Linux), LabWindows/CVI, IVI, NET, Delphi, Visual Basic and Python are available, as well as a basic licence of the Spectrum software SBench 6.
