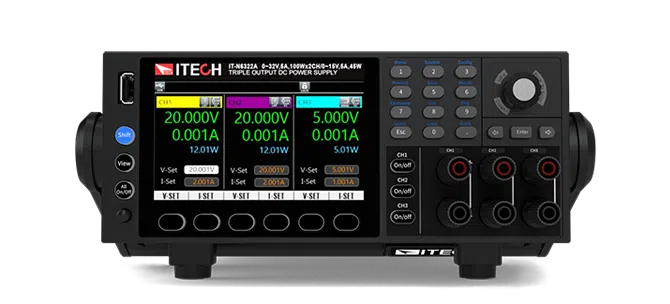

Itech IT-N6300 three-channel DC power supply
- Output power: Up to 445 W
- Voltage range: Up to 60 V (CH1/CH2); 15 V (CH3)
- Current range: Up to 10 A (CH1/CH2); 5 A (CH3)
- Resolution: 1 mV/0.1 mA
- Interfaces: USB, LAN, RS232, Digital I/O
- Security: OVP, UVP, OCP, UCP, OTP, FOLDBACK
- Dimensions: 2U half-rack
The Itech IT-N6300 three-channel DC power supply is a high-performance power supply designed for advanced testing in R&D, manufacturing and education. With three fully independent outputs, the IT-N6300 offers unmatched versatility. The outputs can be used separately as well as connected in series or parallel. For specific test setups, synchronization of the channels is also possible. Its compact 2U half-rack design makes it suitable for workbenches and test setups with limited space, while its advanced features ensure precision and reliability.
Compact and powerful design
The IT-N6300 is designed to handle multiple testing needs with a maximum power of 445 W and an output resolution of 1 mV/0.1 mA. This combined with low ripple and noise. Each channel is fully isolated. The device offers a fast transient response time of ≤50 µs, ensuring stable performance under dynamic loads.
Versatile operational modes
The power supply supports a wide range of output modes, including:
> Series output: Combine CH1 and CH2 for higher output voltage.
> Parallel output: CH1 and CH2 combined for higher currents.
> Bipolar mode: CH1 and CH2 provide positive and negative voltages.
> Synchronous tracking: provide synchronous adjustment of CH1 and CH2
These modes make the IT-N6300 ideal for a wide range of applications, from basic R&D testing to complex validations.
Innovative features and protection
Built-in CC and CV priority modes allow users to choose between current- or voltage-driven priority, which is critical for sensitive applications that require fast response without overshoot. The IT-N6300 offers comprehensive protection options such as OVP (overvoltage protection), OCP (overcurrent protection) and FOLDBACK protection, which protects valuable devices during critical tests. In addition, local and remote sensing modes ensure accurate voltage measurements even with long connection cables.
Advanced connectivity and operation
The 4.3-inch color display provides an intuitive interface for easy configuration, real-time monitoring and trend analysis. With support for USB, LAN, RS232 and Digital I/O, the IT-N6300 B Series is easy to integrate into automated test setups. The built-in sequence editor allows programming and saving complex test profiles, increasing efficiency and reducing errors.
Available models
| Model | Voltage | Current | Power |
| IT-N6322A | CH1: 32V CH2: 32V CH3: 9V |
CH1: 6A CH2: 6A CH3: 5A |
CH1: 100W CH2: 100W CH3: 45W |
| IT-N6322B
|
CH1: 32V CH2: 32V CH3: 15V |
CH1: 6A CH2: 6A CH3: 5A |
CH1: 100W CH2: 100W CH3: 45W |
| IT-N6323A
|
CH1: 60V CH2: 60V CH3: 9V |
CH1: 3A CH2: 3A CH3: 5A |
CH1: 100W CH2: 100W CH3: 45W |
| IT-N6323B
|
CH1: 60V CH2: 60V CH3: 15V |
CH1: 3A CH2: 3A CH3: 5A |
CH1: 100W CH2: 100W CH3: 45W |
| IT-N6332A
|
CH1: 32V CH2: 32V CH3: 9V |
CH1: 10A CH2: 10A CH3: 5A |
CH1: 200W CH2: 200W CH3: 45W |
| IT-N6332B
|
CH1: 32V CH2: 32V CH3: 15V |
CH1: 10A CH2: 10A CH3: 5A |
CH1: 200W CH2: 200W CH3: 45W |
| IT-N6333A
|
CH1: 60V CH2: 60V CH3: 9V |
CH1: 5A CH2: 5A CH3: 5A |
CH1: 200W CH2: 200W CH3: 45W |
| IT-N6333B | CH1: 60V CH2: 60V CH3: 15V |
CH1: 5A CH2: 5A CH3: 5A |
CH1: 200W CH2: 200W CH3: 45W |
Applications
The IT-N6300 is designed for various applications:
> Production lines: Testing of components and systems.
> Maintenance and calibration: Reliable measurements for diagnosis and validation.
> Research and development: Validation of designs and innovative experiments.
> Academic laboratories: Support for teaching and research projects.
The Itech IT-N6300 Series Triple-Channel DC Power Supply combines precision, reliability and flexibility in one compact platform. Contact us for more information or a customized quote.
