Spectrum M2p.59xx-x4 series digitizer cards
|
Spectrum M2p.59xx

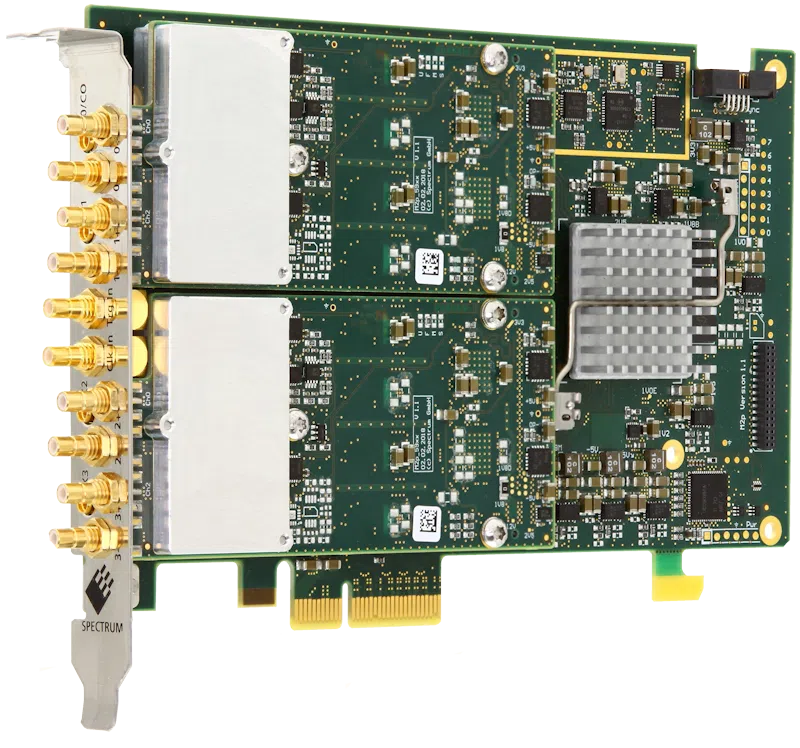

The Spectrum M2p.59xx series digitizer cards are 16-bit digitizers with a maximum sample rate of 125MS/sec. The inputs can be switched as Single Ended (SE) or Differential (Diff). Depending on the model you have up to 8 channels. Up to 16 cards can be synchronized in one system. Optionally there is also an 8-channel asynchronous digital Input/Output. Synchronization with the digital I/O cards and arbitrary waveform generators of the M2p series is also possible.
All cards of the Spectrum M2p.59xx series have standard 512MSamples on board memory. This can optionally be extended to 1GSamples. In FIFO mode it is possible to simultaneously send the data to PC memory and read new data. The data streaming speed is maximum 700MB/sec. Data streaming to a CUDA GPU is also possible with the SCAPP option.
The Spectrum M2p.59xx series models:
Model # | 1-ch | 2-ch | 4-ch | 8-ch |
M2p.5911 | 5 MS/s SE | 5 MS/s SE | ||
5 MS/s Diff | 5 MS/s Diff | |||
M2p.5912 | 5 MS/s SE | 5 MS/s SE | 5 MS/s SE | |
5 MS/s Diff | 5 MS/s Diff | |||
M2p.5916 | 5 MS/s SE | 5 MS/s SE | 5 MS/s SE | |
5 MS/s Diff | 5 MS/s Diff | 5 MS/s Diff | ||
M2p.5913 | 5 MS/s SE | 5 MS/s SE | 5 MS/s SE | 5 MS/s SE |
5 MS/s Diff | 5 MS/s Diff | 5 MS/s Diff | ||
M2p.5920 | 20 MS/s SE | |||
20 MS/s Diff | ||||
M2p.5921 | 20 MS/s SE | 20 MS/s SE | ||
20 MS/s Diff | 20 MS/s Diff | |||
M2p.5922 | 20 MS/s SE | 20 MS/s SE | 20 MS/s SE | |
20 MS/s Diff | 20 MS/s Diff | |||
M2p.5926 | 20 MS/s SE | 20 MS/s SE | 20 MS/s SE | |
20 MS/s Diff | 20 MS/s Diff | 20 MS/s Diff | ||
M2p.5923 | 20 MS/s SE | 20 MS/s SE | 20 MS/s SE | 20 MS/s SE |
20 MS/s Diff | 20 MS/s Diff | 20 MS/s Diff | ||
M2p.5930 | 40 MS/s SE | |||
40 MS/s Diff | ||||
M2p.5931 | 40 MS/s SE | 40 MS/s SE | ||
40 MS/s Diff | 40 MS/s Diff | |||
M2p.5932 | 40 MS/s SE | 40 MS/s SE | 40 MS/s SE | |
40 MS/s Diff | 40 MS/s Diff | |||
M2p.5936 | 40 MS/s SE | 40 MS/s SE | 40 MS/s SE | |
40 MS/s Diff | 40 MS/s Diff | 40 MS/s Diff | ||
M2p.5933 | 40 MS/s SE | 40 MS/s SE | 40 MS/s SE | 40 MS/s SE |
40 MS/s Diff | 40 MS/s Diff | 40 MS/s Diff | ||
M2p.5940 | 80 MS/s SE | |||
80 MS/s Diff | ||||
M2p.5941 | 80 MS/s SE | 80 MS/s SE | ||
80 MS/s Diff | 80 MS/s Diff | |||
M2p.5942 | 80 MS/s SE | 80 MS/s SE | 80 MS/s SE | |
80 MS/s Diff | 80 MS/s Diff | |||
M2p.5946 | 80 MS/s SE | 80 MS/s SE | 80 MS/s SE | |
80 MS/s Diff | 80 MS/s Diff | 80 MS/s Diff | ||
M2p.5943 | 80 MS/s SE | 80 MS/s SE | 80 MS/s SE | 80 MS/s SE |
80 MS/s Diff | 80 MS/s Diff | 80 MS/s Diff | ||
M2p.5940 | 125 MS/s SE | |||
125 MS/s Diff | ||||
M2p.5941 | 125 MS/s SE | 125 MS/s SE | ||
125 MS/s Diff | 125 MS/s Diff | |||
M2p.5942 | 125 MS/s SE | 125 MS/s SE | 125 MS/s SE | |
125 MS/s Diff | 125 MS/s Diff | |||
M2p.5946 | 125 MS/s SE | 125 MS/s SE | 125 MS/s SE | |
125 MS/s Diff | 125 MS/s Diff | 125 MS/s Diff | ||
M2p.5943 | 125 MS/s SE | 125 MS/s SE | 125 MS/s SE | 80 MS/s SE |
125 MS/s Diff | 125 MS/s Diff | 125 MS/s Diff |
Specifications:
There are also extensive triggering possibilities such as pulse width triggering and / or triggering for the analog and digital channels. All Spectrum digitizers also have acquisition modes such as Multiple recording (segmented memory), Gated sampling and ABA mode (sample rate switching) for data reduction.
All digitizers come with an extensive package of software support. Drivers for Windows and Linux operating systems (32-bit and 64-bit) are included. Example programs and drivers for C/C++, LabVIEW (Windows), MATLAB (Windows and Linux), LabWindows/CVI, IVI, .NET, Delphi, Visual Basic and Python are available.
A basic license of the Spectrum software SBench 6 is also included. Optional is the SBench6-Pro software and possibly the multi board version of the software.
