Spectrum DN2.445x series

The Spectrum DN2.445 Series datasheet is replaced by the DN2.44x series datasheet.

Spectrum DN2.445

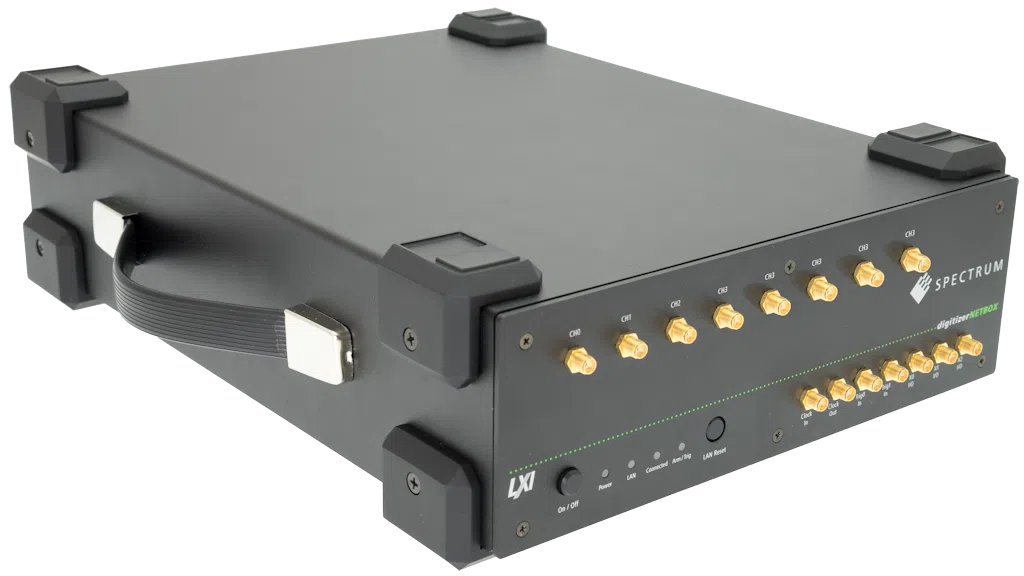

The Spectrum DN2.445 Series Netbox digitizers are 14-bit standalone digitizers with a maximum sample rate of 500MS/sec. These standalone instruments have a built-in web server and a Gbit Ethernet connector for programming from a PC or a connection in a LAN network.

Depending on the model, you will have up to 8 channels. Up to 4 channels you will have 4GSample memory; at 8 channels you will have 8GSample memory.

In FIFO mode, it is possible to simultaneously forward the data to PC memory or an internal (optional) server, and to retrieve new data.

Data reduction is also possible with the option averager and peak detect.

The DN2.445 models are available in 3 versions:

Model # 1-ch   2-ch 4-ch  8-ch
DN2.445-08 500 MS/s 500 MS/s 500 MS/s 500 MS/s
DN2.445-04 500 MS/s 500 MS/s 500 MS/s
DN2.445-02 500 MS/s 500 MS/s

All Spectrum digitizers also have acquisition modes such as Multiple recording (segmented memory), Gated sampling and ABA mode (sample speed switching) for data reduction.

All digitizers come with an extensive package of software support. Drivers for Windows and Linux operating systems (32 bit and 64 bit) are included. Example programs and drivers for C/C+++, LabVIEW (Windows), MATLAB (Windows and Linux), LabWindows/CVI, IVI,. NET, Delphi, Visual Basic and Python are available, as well as a basic licence of the Spectrum software SBench 6.



Open the datasheet for detailed specifications of this product.
