Spectrum DN2.441 and DN2.442 Series Netbox digitizers

  • 250MS/sec of 130MS/sec
  • Up to 8 channels
  • Up to 4GS on board memory
  • optional digital inputs
  • Average option
  • Peak detect option
View datasheet

Spectrum DN2.44x

The Spectrum DN2.441 and DN2.442 Series datasheet is replaced by the DN2.44x series datasheet.

Spectrum DN2.441 and DN2.442

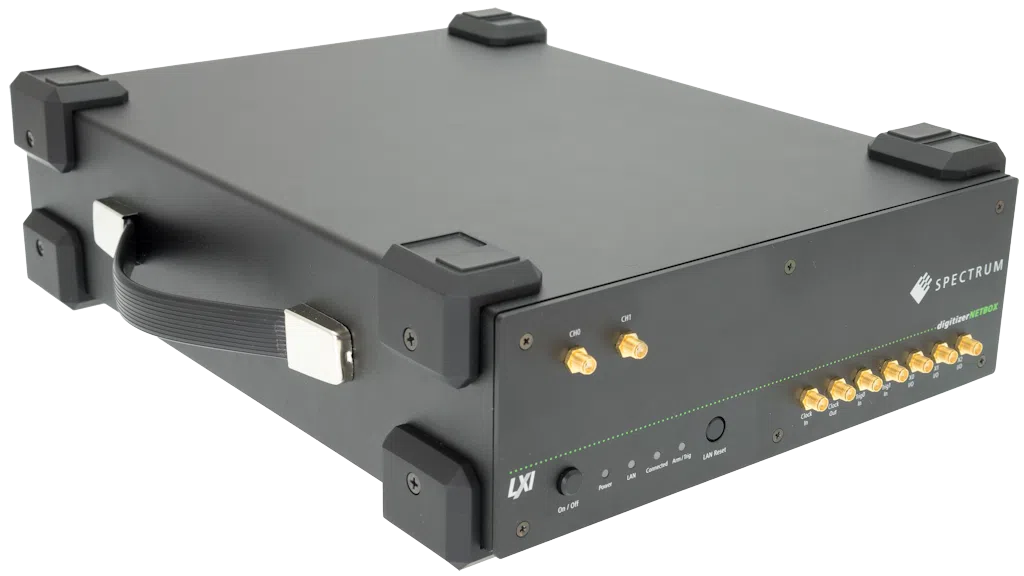

The Spectrum DN2.441 and DN2.442 Series Netbox digitizers are 16-bit standalone digitizers with a maximum sample rate of 250MS/sec. These standalone instruments have a built-in web server and a Gbit Ethernet connector for programming from a PC or a connection in a LAN network.

Depending on the model, you will have up to 8 channels. Up to 4 channels you will have 4GSample memory; at 8 channels you will have 8GSample memory.

In FIFO mode, it is possible to simultaneously forward the data to PC memory or an internal (optional) server, and retrieve new data. Data reduction is also possible with the option averager and peak detect.

The DN2.442 models are available in 3 versions:

Model #   1-ch   2-ch  4-ch 8-ch
DN2.442-08 250 MS/s 250 MS/s 250 MS/s 250 MS/s
DN2.442-04 250 MS/s 250 MS/s 250 MS/s
DN2.442-02 250 MS/s 250 MS/s



De DN2.441 modellen are also available in 3 versions:

Model #   1-ch   2-ch  4-ch 8-ch
DN2.441-08 130 MS/s 130 MS/s 130 MS/s 130 MS/s
DN2.441-04 130 MS/s 130 MS/s 130 MS/s
DN2.441-02 130 MS/s 130 MS/s



All Spectrum digitizers also have acquisition modes such as Multiple recording (segmented memory), Gated sampling and ABA mode (sample speed switching) for data reduction.

All digitizers come with an extensive package of software support. Drivers for Windows and Linux operating systems (32 bit and 64 bit) are included. Example programs and drivers for C/C+++, LabVIEW (Windows), MATLAB (Windows and Linux), LabWindows/CVI, IVI,. NET, Delphi, Visual Basic and Python are available, as well as a basic licence of the Spectrum software SBench 6.
