Home » Itech IT6100 Series DC Power Supplies

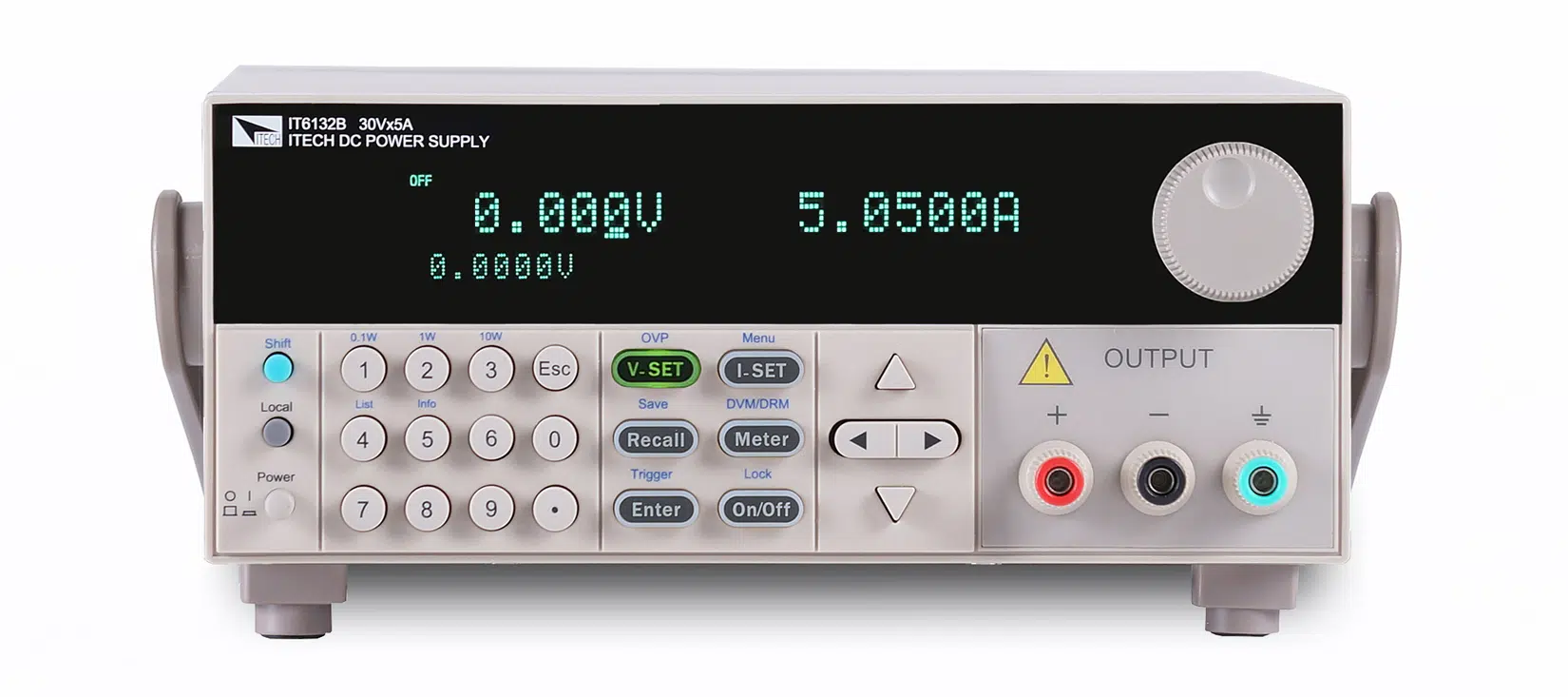

The Itech IT6100 series DC power supplies consist of high quality linear programmable power supplies, available in power ratings from 86 W to 1200 W. The IT6100 provides low ripple and noise and meets high speed requirements.
The Itech IT6100 series of programmable DC power supplies are designed for test requirements that general power supplies cannot achieve. For accurate measurements, this is an ideal power supply due to the high resolution and high accuracy of 0.1 mV / 1 mA. The B-version: up to 150 W has a resolution up to 0.01 mA. The voltage rise time is short and goes up to 20 ms and even within 1 or 2 ms on models with 1000 W and more. In case of a load change, the power supply reacts even faster, within 150 to 200 µs.
The output waveform priority function enables voltage or current waveforms with a fast rise time without overshoot. This is widely used in aerospace and aerospace power supply module testing as well as other precision testing. The IT6100 has a built-in standard USB / RS232 / GPIB communication interface and supports SCPI communication protocol. The power supplies support List programming.
The IT6100 series has built-in 5 1/2 digital voltmeter and four-wire milliohmmeter, a timer from 0.01 to 60.000s and remote sense interface for compensation. The power supplies are suitable for installation in 19 inch standard rack. This makes the power supply of the IT6100 series very suitable for laboratory and production line tests.
The Itech IT6100 series include the following models:
IT6121B 100W DC power supply 20V/5A IT6122B 96W DC power supply 32V/3A IT6123B 86W DC power supply 72V/1.2A IT6132B 150W DC power supply 30V/5A IT6133B 150W DC power supply 60V/2.5A IT6151 312W DC power supply 0-5.2V/0-60A IT6152 540W DC power supply 0-20V/0-27A IT6153 540W DC power supply 0-30V/0-18A IT6154 540W DC power supply 0-60V/0-9A IT6162B 1000W DC power supply 0-20V/0-50A IT6164B 1200W DC power supply 30V/40A or 60V/20A
These power supplies are used for power modules in aviation and medical equipment, for PCB testing and for testing electronic power supplies.
If you have any questions about prices and/or delivery times of one of the Itech IT6100 series programmable DC power supplies, please contact us. We will gladly advise you on choosing the best power supply for your application. For detailed specifications of this product, please refer to the datasheet.
Open the datasheet for detailed specifications of this product.
