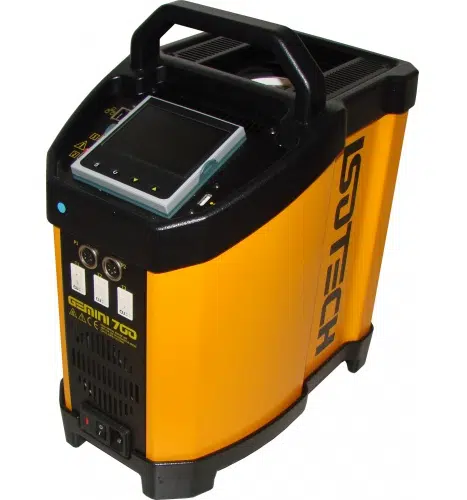

Isotech Gemini Dry Block calibrator

The Isotech Gemini dry blocks have a high capacity so that a large number of sensors can be calibrated. They are also suitable for large diameter measuring probes with the block volume of a nominal 64 x 160 mm.

Although heating or cooling of the large block takes longer than the Isotech Jupiter, it can be used to calibrate thermocouples, resistance thermometers, thermostats and sensors that are too large for the smaller blocks.

The Isotech Gemini are award-winning calibrators that are easy to use. They are available in three versions: Basic, Site and Advanced. The Basic has a digital display of set and nominal temperature. The Site also has a built-in independent temperature indicator for a reference probe. The Advanced controller has inputs for reference and test thermometers with a new range of advanced features, such as automatic temperature cycling, secure data logging and high resolution full-color display. All models are equipped with I-Cal Easy Log software. The Advanced models also include software for managing logged data and unit configuration.

There are two different models;

The Gemini Type 550 with a temperature range from 35°C to 550°C.
The Gemini Type 700 with a temperature range of 35°C to 550°C: 50°C to 700°C

Open the datasheet for detailed specifications of this product.
