GenRad 1482 Series Induction Standard

GENRAD 1482 SERIES INDUCTION STANDARD

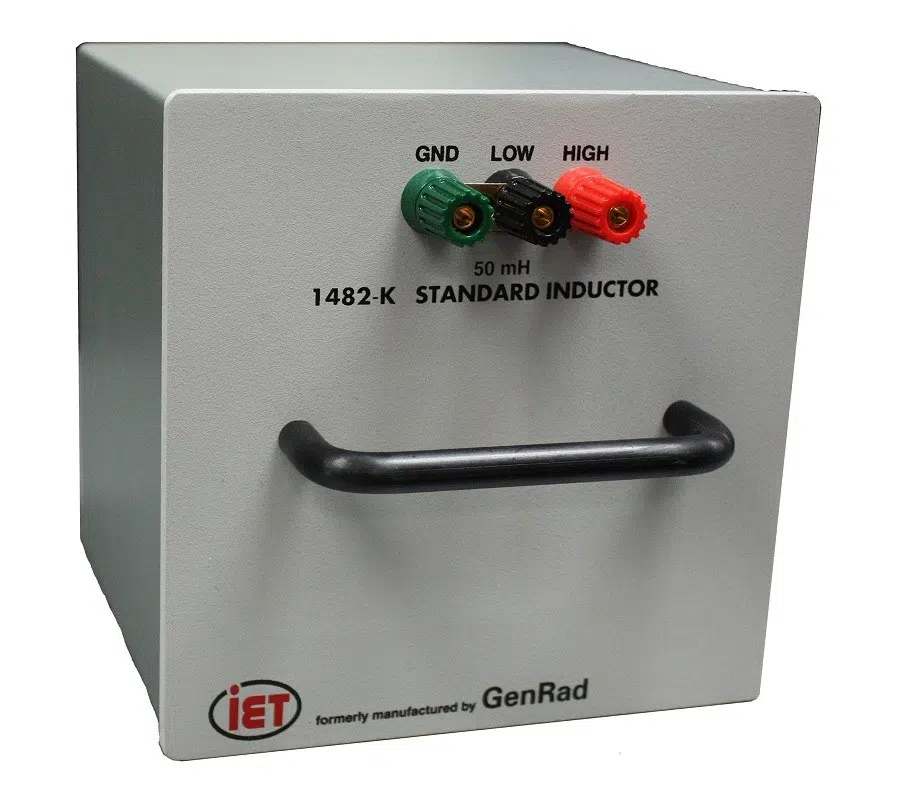

The GenRad 1482 series induction standard is a very accurate, stable self induction standard for use as a low frequency reference or working standard in the calibration laboratory. The values of these standards range from 1µH to 10H.

The history, which extends over 40 years, including the induction standards sent for calibration to the National Metrology Institutes (NMI’s) in different countries, shows long-term stability of ± 0.01%, Typically <10 ppm / year.

Values of 500 µH and above have three connections, two for the inductor leads and the third connected to the housing, to provide either two or three connections as standard. Coils with inductance values of <500 µH have three additional connections to make it possible to switch between a short circuit and the inductance value in order to minimize errors. This allows the user to perform short circuit compensation without disconnecting the inductor wiring.

MODELS

Model	Nominal	Adjustment	Adjustment	Resonant	*dc
	Inductance	Accuracy	Frequency	Frequency	Resistance
		(%)	(kHz)	(kHz)	(Ω
1482-AAA	1 µH	±5%	10	8500	0.006
1482-AA	10 µH	±1%	10	4500	0.03
1482-A	50 µH	±0.5	10	3100	0.039
1482-B	100 µH	±0.25	10	2250	0.083
1482-C	200 µH	±0.25	10	1400	0.15
1482-D	500 µH	±0.1	1	960	0.38
1482-E	1 mH	±0.1	1	800	0.84
1482-F	2 mH	±0.1	1	580	1.52
1482-G	5 mH	±0.1	1	320	3.8
1482-H	10 mH	±0.1	1	220	8.2
1482-J	20 mH	±0.1	1	145	14.5
1482-K	50 mH	±0.1	0.1	84	36.8
1482-L	100 mH	±0.1	0.1	71	81
1482-M	200 mH	±0.1	0.1	39.0	109
1482-N	500 mH	±0.1	0.1	24.5	280
1482-P	1 H	±0.1	0.1	14.6	616
1482-Q	2 H	±0.1	0.1	10.6	1125
1482-R	5 H	±0.1	0.1	6.8	2920
1482-T	10 H	±0.1	0.1	4.9	6400



LIST OF FEATURES

– A standard for naƟ onal laboratories
– Stability within ±0.01% per year and typically <10 ppm/year
– Values from 1 μH to 10 H
– Standard for quality factor (Q)
– Low known temperature coefficient
– Self-shading annular design
– Calibrated on mulƟ ple frequencies
– Ceramic non-magneƟ c core

For more information on electrical calibration and electrical standards, please refer to the overview page.

Open the datasheet for detailed specifications of this product.

Open datasheet Quotation request
