Home » DN2.22x series LXI digitizers from Spectrum

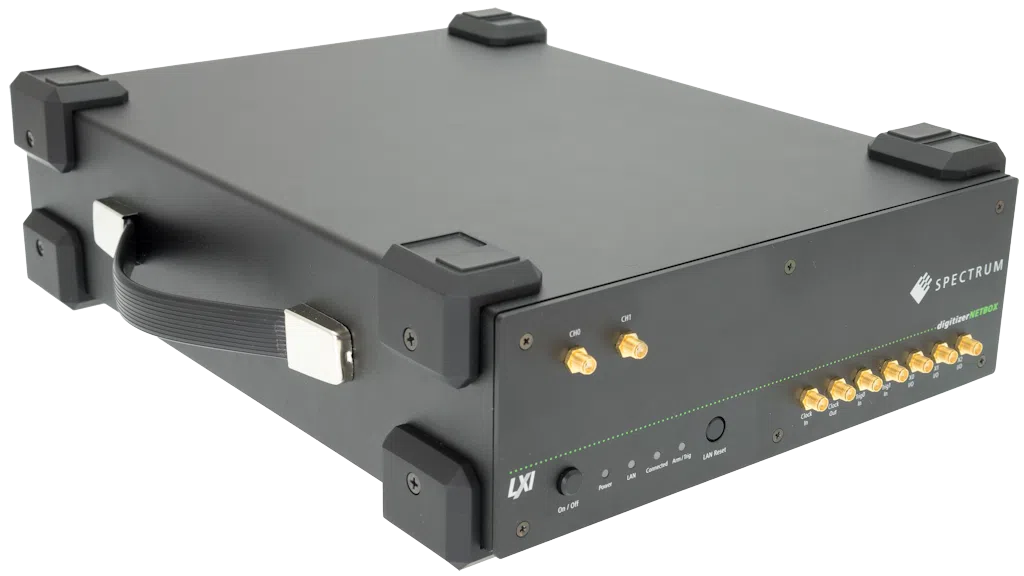

The Spectrum DN2.22x series netbox digitizers are 8-bit standalone digitizers with a maximum sample rate of 5GS/sec. These standalone instruments have a built-in web server and a Gbit Ethernet connector for programming from a PC or connection in a LAN network.
Depending on the model, you will have up to 8 channels. Up to 4 channels, you will have 4GSample memory; at 8 channels you will even have 8GSample memory.
In FIFO mode, it is possible to simultaneously forward the data to PC memory or and internal (optional) server, and retrieve new data.
The DN2.22x series models come in 9 versions. All Spectrum digitizers also have acquisition modes such as Multiple recording (segmented memory), Gated sampling and ABA mode (sample speed switching) for data reduction.
All digitizers come with a comprehensive package of software support.
Drivers for Windows and Linux operating systems (32-bit and 64-bit) are included.
Example programs and drivers for C/C+++, LabVIEW (Windows), MATLAB (Windows and Linux), LabWindows/CVI, IVI,. NET, Delphi, Visual Basic and Python are available, as wel as a basic licence of the Spectrum software SBench 6.
If your application does need more than 8 channels please see the DN6.22x series with a maximum of 24 channels.
If even 24 channels is not enough we can build a PC based system for you with up to 32 channels based on the M4i.22xx series.
For higher resolution solutions in the LXI series digitizers we do have the DN2.44x series with sample speads up to 500MS/sec/channel.
For a complete overview of all LXI digitizers please refer to the LXI digitizers overview page.
If you would like more information, please contact one of our consultants. They will be happy to help you make the right choice.
Open the datasheet for detailed specifications of this product.
